IOBC02 Hands-Free Barcode Scanner
Faster Scanner Raises Working Efficiency
MUNBYN IOBC02 Barcode Scanner is a versatile device designed for efficiency and accuracy. Featuring a [1D Faster Decoding Mode], it enhances compatibility and simplifies operations for traditional barcodes, saving time and resources. With megapixel resolution, it supports 62 barcode types, including Code 128, Code 39, PDF417, and Data Matrix. Perfect for supermarkets, malls, bookstores, pharmacies, libraries, and more, the MUNBYN IOBC02’s omni-directional scanning minimizes data entry errors and boosts productivity, making it an essential tool for retailers.
Desktop Barcode Scanner
Enhance Efficiency, Elevate Accuracy
Features
- Scan Range: 10-250mm(EAN 13 13mil, PCD=90%)
- System compatibility: Linux, Android, Windows XP, 7, 8, 10, 11 and MAC
- Scan Mode: Continuous Scanning
- Recognition angle range: Turn angle ±360°, elevation angle ±60°, declination angle ±70°
- Interface: USB (Drive-Free), USB-COM (Need Driver)
Industry
Interface of Scanner
Connect with a USB cable, plug and play
Easy to Use
- Press the button to switch to 1D mode
- Press the button to adjust the buzzer in to3 kinds.
Support 60 ° Angle Adjustment
Scan the barcode from multiple angles and use it with ease.
Anti-slip Base
More Accurately & Faster Than Others
Camera Image Capture
- Ultra-Wide Scanning Angle & Extended Reading Distance
- Megapixel Resolution for Faster and More Accurate Scans
- Expanded Scan Window for Moving Objects
CDD Light Decoding
- Requires Scanning of All Barcodes for Complete Capture
- Incompatible with 1D Mode Configuration
Product Parameters
| Type of light source | SXGA-W(Width1280*high1024) Ratio(5：4) |

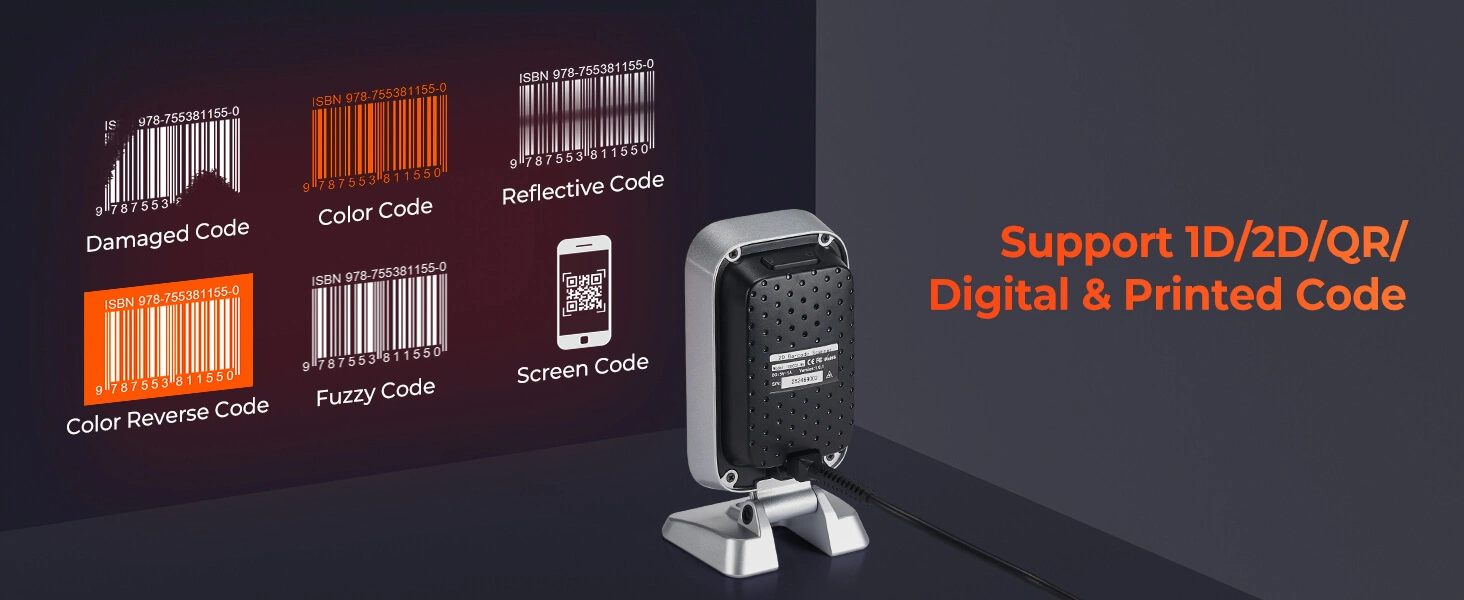

| Supported symbologies | 1D: EAN-8, EAN-13, EAN-132 add-on, EAN-135add-on, ISSN, ISBN, UPC-A, UPC-E, Code 11, Code 32, Code 39, Code 93, Code 128, Codabar, Industrial 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, ISBT-128、GS1-128, GS1 DataBar(RSS14), GS1 DataBar Limited, GS1 DataBar Expanded. 2D: PDF417, MicroPDF417, QR-code、Micro QR, Data Matrix, QR, Aztec. |
| Scan Range | 10-250mm(EAN 13 13mil, PCD=90%) |
| System compatibility | Linux, Android, Windows XP, 7, 8, 10, 11 and MAC |
| Minimum recognition accuracy | Code 39 4mil |
| Motion tolerance | 3.8 meters/second |
| Scan Mode | Continuous Scanning |
| Print contrast | 20% |
| Recognition angle range | Turn angle ±360°, elevation angle ±60°, declination angle ±70° |
| Mutual Move | Indicator light: red and blue dual-color indicator light: blue light flashes to read code prompt, blue light power indicator; Red light: turn off the QR code reading function; buzzer: start prompt, read code prompt; Button: switch three tones; switch read-only 1D mode |
| Interface | USB (Drive-Free), USB-COM (Need Driver) |
| Physical Parameters | |
| Dimensions | 80mm*58.4mm*151.9mm |
| Weight | 150g |
| Material | ABS+PC |
| Cable length | 2M |
| Environmental Parameters | |
| Operating Temperature | -20℃ – 55℃ |
| Storage Temperature | -20℃-60℃ |
| Humidity | 5% to 95% RH.Non-condensing |
| Shock Resistance | Withstands multiple times 1.5 meters drops to concrete |
| Electrical Parameters | |
| Voltage | DC5V±5% |
| Current | Standby current 130mA; Working current 160mA |
