IOBC01 Hands-Free Barcode Scanner
Faster Scanner Raises Working Efficiency
MUNBYN IOBC01 1D/2D Barcode Scanner is a versatile and powerful tool supporting 55 barcode types, including Code 128, Code 39, PDF417, and Data Matrix. It effortlessly scans from various angles on paper and screens, including e-payment codes. With omni-directional scanning, this scanner minimizes data entry errors and boosts productivity. Ideal for supermarkets, malls, pharmacies, libraries, and more, the MUNBYN IOBC01 is essential for retailers aiming to enhance efficiency and customer satisfaction.
Desktop Barcode Scanner
Enhance Efficiency, Elevate Accuracy
Features
- Scan Range: 10-160mm(EAN 13 13mil, PCD=90%)
- System compatibility: Linux, Android, Windows XP, 7, 8, 10, 11 and MAC
- Scan Mode: Continuous Scanning
- Recognition angle range: Turn ±360°, Elevation ±65°, Declination ±65°
- Interface: USB-HID (Drive-Free), USB-COM (Need Driver)
Industry
Library
Automatically Mode
No need to press the button to work

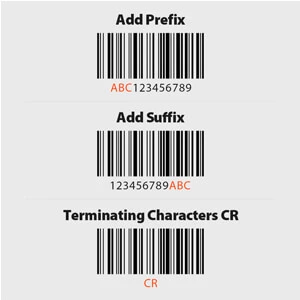

Customized Barcode
Meets all kinds of needs

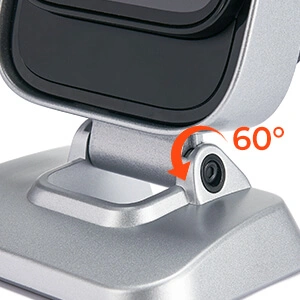

Support 60 ° Angle Adjustment
Easy to scan, reduce muscle strain.

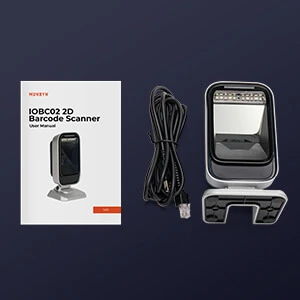

Eqquiped With USB Cable
Product Parameters
| Type of light source | SXGA-W(Width480*high640) Ratio(5：4) |
| Supported symbologies | 1D: Codabar、Code 39、Code 32 Pharmaceutical (PARAF)、Interleaved 2 of 5、NEC 2 of 5、Code 93、Straight 2 of 5 Industial、Straight 2 of 5 IATA，Matrix 2 of 5，Code 11、Code 128、GS1-128、UPC-A、UPC-E、EAN/JAN-8、EAN/JAN-13、MSI、GS1 DataBar Omnidirectional、GS1 DataBar Limited、GS1 DataBar Expanded、China Post(Hong Kong 2 of 5) 2D: PDF417, QR code, MicroPDF417, Australian Post, Canada Post,Japan Post, MaxiCode, Codablock, Aztec, Dutch Post, DataMatrix, etc. |
| Scan Range | 10-160mm(EAN 13 13mil, PCD=90%) |
| Field of view | 44°(H), 34°(V) |
| System compatibility | Linux, Android, Windows XP, 7, 8, 10, 11 and MAC |
| Scan Mode | Continuous Scanning |
| Print contrast | 20% |
| Recognition angle range | Turn ±360°, Elevation ±65°, Declination ±65° |
| Prompt Method | Indicator light: Red light power indicator; Green light flashing code reading prompt, Buzzer: start prompt, read code prompt. |
| Interface | USB-HID (Drive-Free), USB-COM (Need Driver) |
| Physical Parameters | |
| Dimensions | 88mm*64mm*159mm |
| Weight | 150g |
| Material | ABS+PC |
| Cable length | 1.8M |
| Environmental Parameters | |
| Operating Temperature | -20℃ – 60℃ |
| Storage Temperature | -30℃-70℃ |
| Humidity | 5% to 95% RH.Non-condensing |
| Shock Resistance | Withstands multiple times 1.5 meters drops to concrete |
| Electrical Parameters | |
| Voltage | DC5V±5% |
| Current | Standby current 150mA; Working current 22v0mA |
